Reset the Tire Size for ADAS Accuracy

Most people never connect their tires to the cameras and radar watching the road, but the link is real and it trips up more drivers than you would think. You fit a slightly taller set of tires, or go up a wheel size for looks, and a week later a driver-assist warning appears or your adaptive cruise starts behaving oddly. The tires did that.

I ran into this constantly as a calibration tech. Someone changes their tire size, everything seems fine, and then the assist systems start second-guessing themselves because the numbers they rely on no longer match reality. The fix is to reset the tire size so the car’s brain and its sensors agree again.

Here is how the whole thing works and, more importantly, how to set it right so your ADAS reads accurately.

Why tire size even matters to ADAS

Your car does not measure speed with a magic sensor. It counts how fast the wheels are turning and multiplies by the distance one tire covers per revolution. That distance is baked into the factory tire size. Change the tire diameter and every one of those calculations shifts.

A taller tire covers more ground per turn, so the car undercounts your true speed. A shorter tire covers less, so it overcounts. The speedometer is the obvious victim, but the quieter victim is your driver-assist suite, which leans on accurate speed and wheel data to time everything it does.

Adaptive cruise control decides how hard to brake based on closing speed. Automatic emergency braking calculates time-to-impact. If the speed feeding those systems is off by even a few percent, the math drifts. The systems on how adaptive cruise control works depend on this data being right, and the explainer on how automatic emergency braking works shows why timing errors matter for a feature that decides when to hit the brakes for you.

How much of a change actually matters

People assume only a wild oversize setup causes trouble. Not true. Smaller shifts add up.

A plus-size wheel and tire upgrade that keeps the overall diameter close is designed to minimize this, but plenty of upgrades end up a bit taller or shorter than stock. Even a one to two percent difference in rolling diameter is enough to nudge the speed reading and, over time, to matter for a system timing a braking event to the fraction of a second.

Worn tires play a role too. A tire worn from full tread to the wear bars loses noticeable diameter, which is one reason mismatched tire wear across the axles can confuse the wheel-speed comparison the car runs. And if you fit winter tires on smaller wheels each season, you may be swapping between two different rolling diameters twice a year. The guide on calibration after new tires or suspension goes deeper into when a change crosses the line into needing a recalibration.

How to reset the tire size, step by step

Resetting the tire size is not the same on every car. Some let you pick from a menu, many require a scan tool to enter the exact dimensions and run a relearn. Here is the general process.

1. Read the new tire size correctly

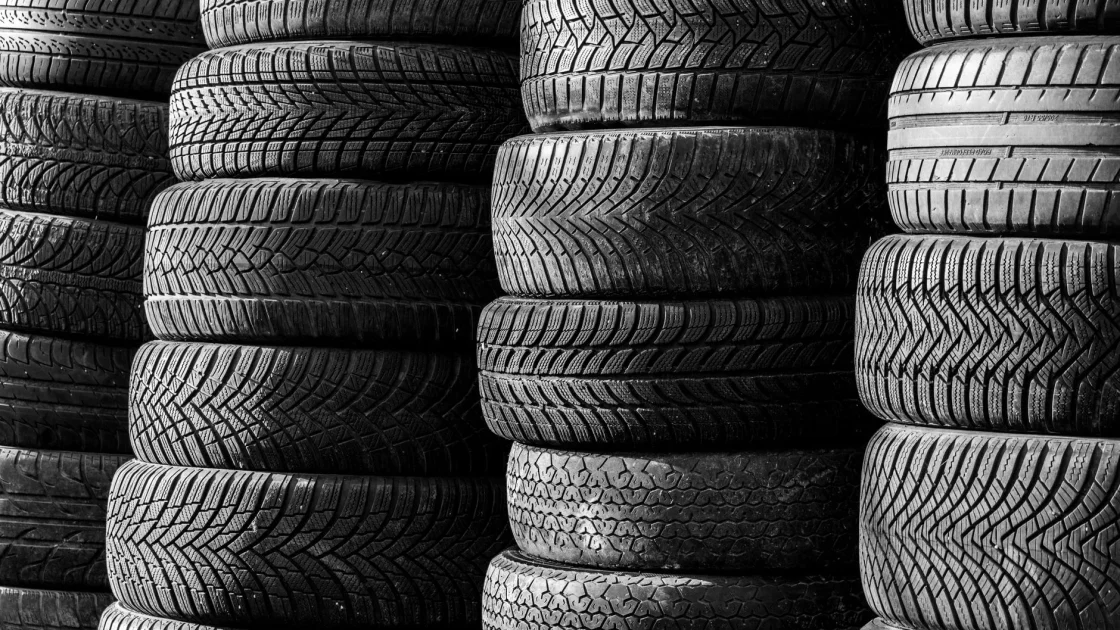

   Find the code on the sidewall, for example 225/45R18. Note it exactly, because the reset needs the real numbers, not a guess.

2. Check for an in-car setting

   Some trucks and SUVs have a tire-size option in the settings menu or instrument cluster. If yours does, enter the new size there first.

3. Use a scan tool if needed

   Many vehicles store tire data in a module you can only reach with a scan tool. The tool lets you enter the size and command a relearn so the speed calculation updates.

4. Drive a relearn cycle

   Some systems finalize the change only after a short drive at steady speed. Completing a proper drive cycle lets the modules settle on the new data.

Tire size and radar aim are different problems

It helps to separate two things, because people blur them. Tire size affects the speed and distance data the systems calculate with. It does not physically move your radar or camera. So resetting tire size is about correcting numbers, not re-aiming a sensor.

That said, some tire and wheel changes come bundled with suspension changes, and those can alter ride height, which does affect where a radar points. If you lowered or lifted the car along with new wheels, you may need both a tire-size reset and a physical recalibration. The overview on why a calibration after alignment is sometimes required explains how ride and geometry changes feed into sensor aim.

Here is a quick comparison of what each change touches.

Getting it right so the systems trust the data

My advice after fixing a lot of these: whenever you change tire size, treat the reset as part of the job, not an afterthought. Buying tires and then ignoring the data side is how people end up with mysterious assist warnings weeks later, long after they have forgotten the tires were new.

If your car lets you set the size yourself, do it the day the tires go on. If it needs a scan tool, ask the tire shop whether they can enter the new size and run the relearn, or plan a visit to someone who can. And if any driver-assist feature acts up afterward, the tire data is the first thing I would check, before assuming a sensor failed.

For the safety background on why keeping these systems accurate matters, the Insurance Institute for Highway Safety keeps solid research on how driver-assist features reduce crashes: IIHS advanced driver assistance.

Get the tire size reset properly and your radar timing, cruise behavior, and braking calculations all go back to trusting real numbers. It is one of those small, invisible steps that keeps the whole safety net working the way the factory intended.
