Ultrasonic Parking Sensors Explained

You have seen them even if you never knew their name: the small round dots set flush into your front and rear bumpers, usually four or six across, often color-matched so they nearly disappear. When you ease into a parking spot and the car starts beeping faster and faster until it holds a solid tone, those little dots are the reason. They are ultrasonic parking sensors, and they work in a way that is genuinely clever and worth understanding, especially when they start beeping at nothing.

As a former calibration technician I dealt with these constantly, usually because a driver was convinced theirs were broken when they were simply dirty. Ultrasonic sensors are the most low-key part of your driver-assistance suite, cheaper and simpler than radar or cameras, but they solve a real problem: judging the last few feet between your bumper and a wall, a post, or the car behind you. Here is how they pull it off.

If you want the wider view of every sensor on the car, the cameras and radar behind ADAS covers the whole set. This one is all about the sound-based dots.

How sound becomes a distance

Ultrasonic parking sensors work on the same principle a bat uses. Each sensor emits a short burst of ultrasonic sound, a pitch far too high for you to hear, then falls silent and listens. If there is an object nearby, the sound bounces off it and returns as an echo. The sensor times how long that round trip takes.

Because sound travels at a known, steady speed through air, that time directly gives the distance. A quick echo means something is close; a slower echo means it is farther away; no echo at all means the path is clear. The car turns that distance into the audio you hear, beeping faster as the gap shrinks and going solid when you are about to make contact. Some cars add a visual bar on the screen that fills in as you approach.

It is a beautifully simple system. No lens to read, no radio waves to decode, just a chirp and an echo, repeated several times a second across every sensor in the bumper. That simplicity is exactly why they are inexpensive enough to fit even on modest cars.

What they are good at, and what they are not

Ultrasonic sensors are specialists. They excel at short range, typically from a few inches out to around eight feet, which is precisely the zone that matters when you are parking. Within that range they are accurate and quick, and they cover the low obstacles a camera might miss and the close ones radar is not tuned for.

What they cannot do is see far. They are useless at highway distances, which is why they are not the sensor behind adaptive cruise or automatic braking; that is the radar’s job, and my explainer on how car radar sensors work covers that side. Ultrasonic sensors also give you distance but not a clear picture, so they pair naturally with a backup camera, which shows you what is there while the sensors judge how close it is. If your camera is the missing piece, fixing a backup camera not working handles that.

Radar is for the long game and bad weather. Ultrasonic sensors are for the last eight feet in a tight garage. Different tools, different jobs, and your car uses both without you thinking about it.

Where they live and how many you have

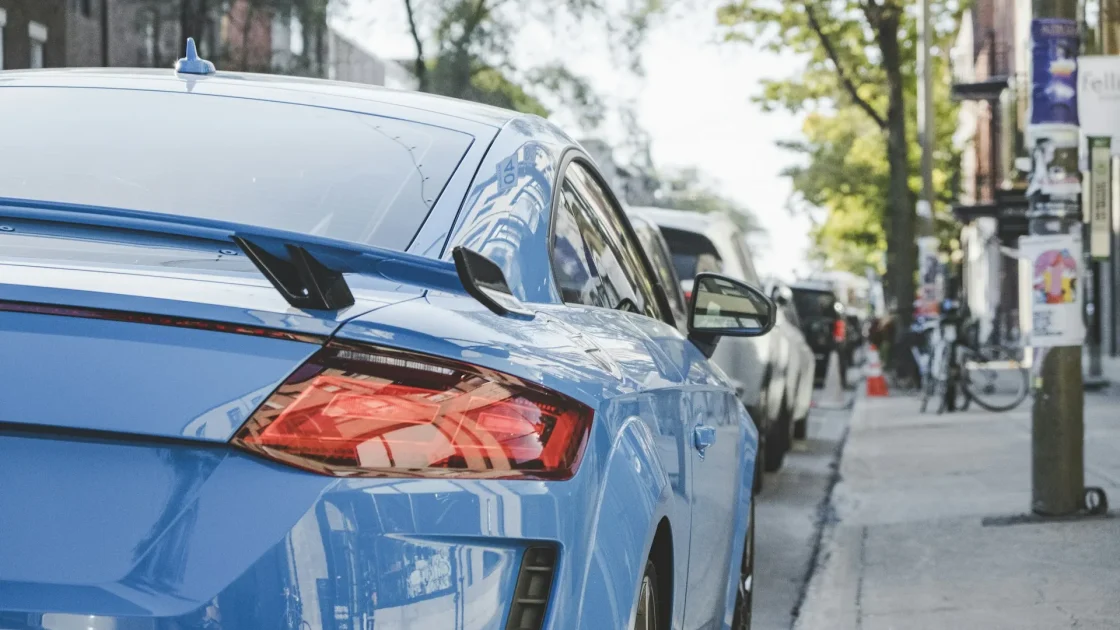

The sensors sit in the bumper covers, usually four to six in the rear and, on better-equipped cars, another set up front. You can see and feel them: small circles, evenly spaced, flush with the paint. Because they are on the outside of the car facing the world, they take the full brunt of weather and road grime, which is the root of most complaints about them.

That exposed placement is the trade-off for their simplicity. A camera behind glass or a radar behind a bumper is somewhat protected; an ultrasonic sensor is right out in the open, collecting whatever the road throws at it. Keep that in mind, because it explains almost everything that goes wrong with them.

Why they beep at nothing

This is the number one question I got, and the answer is almost always contamination. Anything sitting on the face of a sensor can throw off the echo or block it, and the car cannot tell the difference between a real obstacle and a blob of mud. So it beeps.

• Mud, dirt, or road film caked over a sensor muffles or reflects the pulse, triggering false alerts.
• Ice or packed snow in winter is a classic cause of constant phantom beeping.
• Heavy rain can scatter the sound and cause brief dropouts or false readings.
• A trailer, bike rack, or towball genuinely sits in the detection zone and reads as a permanent obstacle.
• A thick coat of wax or a stray sticker over a sensor changes how it behaves.

The fix for most of these is embarrassingly simple: wipe the sensors clean. I walk through the whole troubleshooting path in parking sensors beeping for no reason, including the winter version where ice packs into the sensor recesses. Nine times out of ten the culprit is on the surface, not inside the car. The consumer explainer at MyCarDoesWhat is a good plain-language primer on how these close-range parking aids fit alongside the rest of your safety tech.

When it is a real fault

Sometimes cleaning does not fix it, and then you are looking at an actual failure. Ultrasonic sensors do fail with age and impact, and the symptoms are fairly distinct.

A sensor that has died often produces a steady tone the moment you shift into reverse, regardless of what is behind you, or a single click and then silence. Physical damage from a minor bump, a high-pressure car wash, or a curb tap can crack or unseat a sensor, and wiring or connector corrosion behind the bumper can also cut one off. Beeping that starts right after a car wash is a common version of this, since forced water gets into the connectors.

The good news is that a single failed ultrasonic sensor is one of the cheaper ADAS parts to replace, and unlike radar or a windshield camera, most do not require a full calibration procedure afterward, though you should confirm for your specific car. Compared with the pricier sensors on the vehicle, the ultrasonic ones are refreshingly straightforward to sort out.

Keeping them honest

Ultrasonic parking sensors ask very little of you. Keep them clean, clear the snow and ice out of their recesses in winter, and give them a wipe after a muddy drive. Use a soft cloth and plain water; do not blast them with a pressure washer at close range or scrape them with anything hard. That is essentially the entire maintenance routine, and it keeps the false beeps away.

They will never be the star of your car’s safety story, but they save bumpers and mirrors every single day in tight garages and crowded lots. Understanding that they are just chirping and listening for echoes takes the mystery out of a wall of beeping, and knowing that dirt is usually the villain saves you a needless trip to the shop. If a parking warning light rather than just a beep is what you are seeing, the parking sensor warning light explained decodes that, and for the broader dashboard picture, what your ADAS warning lights actually mean ties it all together.
