Why Calibration Fails and What to Do

There are few things more frustrating in this line of work than a calibration that simply will not pass. The car is set up, the targets are placed, the scan tool runs the routine, and then it hands back a curt failure message with no explanation of what it disliked. I have stood in the bay staring at that screen more times than I would like to admit, and over the years I learned that a failed calibration is almost always trying to tell you something specific.

If you got a call from your shop saying the calibration failed, or you tried it yourself and hit a wall, this is the troubleshooting map I use. Calibration failures are rarely random. They fall into a handful of buckets, and once you know the buckets, you can usually work out which one you are in.

Let me take you through them roughly in the order I check, from the most common and easiest to fix down to the hardware problems that mean a part has to be replaced.

Start with the setup, because that is most failures

The single biggest cause of a failed static calibration is not the car at all. It is the environment around it. These routines demand a controlled setup, and small deviations that would not matter for any other repair will stop a calibration cold.

The floor has to be genuinely level. A bay with even a slight slope tilts the whole car, which tilts the sensors, which means the targets no longer line up where the software expects. Lighting matters too: too dim and the camera cannot resolve the target, too much glare and it washes out. Reflective surfaces and background clutter behind the target can confuse the camera into reading the wrong pattern.

Then there is target placement itself. The boards have to be centered on the vehicle centerline, square to it, and set at the exact distance and height for that model. A target a couple of centimeters off, or rotated a few degrees, fails the routine. The background on static versus dynamic calibration explains why static work is so sensitive to all of this, and what a calibration target board does shows why its exact position is so critical.

Check the vehicle’s own condition next

Assuming the bay is right, the next bucket is the state of the car itself. A calibration assumes the vehicle is sitting exactly as the factory intended, and several everyday things quietly break that assumption.

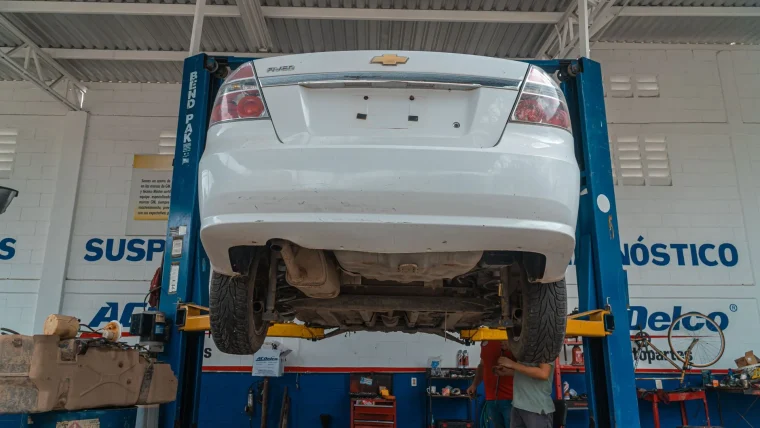

Tire pressure is the classic culprit. A few soft tires drop the ride height, which changes the angle every sensor points at, and the routine either fails or passes with a bad result. The same goes for a trunk full of tools, a roof load, or an unusually heavy passenger during the procedure. Everything that changes how the car sits changes where the sensors aim. The guide to calibration after new tires or suspension covers how ride-height changes throw the whole thing off.

Wheel alignment belongs here too. If the thrust angle is off, the car’s true centerline and its geometric centerline disagree, and a camera calibrated to the wrong reference will misread the road. This is exactly why the question of whether you need calibration after an alignment comes up so often, and why a fresh alignment sometimes has to precede a successful calibration.

Rule out a blocked or dirty sensor

This one sounds obvious, but it fails calibrations constantly. The camera or radar cannot calibrate if it cannot see clearly, and a smear of film on the windshield or a haze over the radar cover is enough to stop the routine.

Before assuming anything is broken, the sensor face needs to be genuinely clean. Not wiped in passing, but clean, using the correct method so you do not scratch a lens or damage a radar cover. The walkthrough on cleaning ADAS sensors the right way is the reference I would point to, and the overview of what blocks your ADAS camera lists the culprits people miss, like a tint strip or an aftermarket dash accessory in the sightline.

• Windshield spotless directly in front of the forward camera, inside and out.
• Radar cover and emblem clean, with no ice, mud, or film over the sensor.
• No aftermarket tint, sticker, or dash-mounted device in the camera’s view.
• No physical damage or crack in the glass right in front of the lens.

Look for an underlying fault the routine cannot fix

If the bay is right, the car sits correctly, and the sensors are clean, but the calibration still fails, you are usually looking at an underlying mechanical or electrical problem. Calibration is the final step, and it cannot compensate for a component that is damaged or mounted wrong.

The common one is a bent or damaged bracket. If the car was in a collision, the camera bracket on the windshield or the radar mount behind the bumper can be tweaked just enough that no software adjustment can bring the aim into range. The routine tries, hits the limit of its correction, and fails. This is why a calibration attempted right after a bumper repair sometimes fails until the mount is straightened or replaced.

Wiring and connector faults land here too, along with a sensor that was itself damaged in an impact. In these cases the failure is doing its job: it is refusing to certify a sensor that physically cannot be aimed correctly. The rundown of how ADAS sensors fail over time covers the ways a unit can degrade to the point of no return.

What to do after a failed calibration

So you have a failure in hand. Here is the order I would work through to resolve it.

1. Verify the environment

   Confirm the floor is level, the lighting is controlled, and the targets are placed to spec. Move to a proper bay if there is any doubt.

2. Correct the car’s stance

   Set all tires to the door-jamb pressure, remove heavy cargo and roof loads, and confirm the alignment is within spec before retrying.

3. Clean every relevant sensor

   Windshield at the camera, radar cover, and emblem, using the correct method. Remove anything aftermarket from the camera’s view.

4. Inspect for damage and rescan

   Check brackets, mounts, and connectors for impact damage, then pull the fault codes. A stored code often names the exact problem the calibration is hitting.

If the routine still will not pass after all of that, the honest conclusion is usually that a part needs replacing rather than recalibrating. For the wider context on the whole procedure and where failures fit, the complete guide to ADAS calibration ties it together. The Insurance Institute for Highway Safety also keeps solid background on why these systems must aim correctly to work at all: IIHS advanced driver assistance.

The thing I want you to take away is that a failed calibration is information, not bad luck. Work the buckets in order, environment, then vehicle stance, then sensor cleanliness, then hardware, and the failure almost always names its own cause. The routine is not being difficult. It is refusing to sign off on a system it cannot trust, which is exactly what you want it to do.
